Summary:

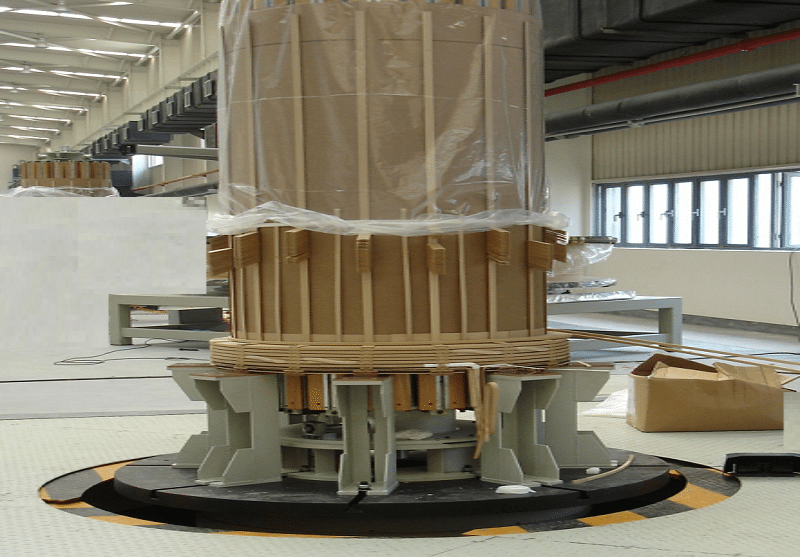

Vertical coil winding machine is used for winding coils for high voltage and super high voltage helical disc winding of transformers. Machine can be customized to suit for individual Specific requirements and various customized winding torque characteristics.

Solution:

Vertical Winding machines can be customized to suit for individual Specific requirements and various customized winding torque characteristics. It can be moved to any desired place easily & advantage of low noise and easy operation.

It is a semi-automatic machine & these machines have two Platforms. i.e., Operator Platform and Bobbin Platform which moves up and down through High range Motorized Scissor Lift which is controlled by Heavy duty VFD & winding rotation which is controlled by servo system which can give high winding accuracy .These machines having more advantages of un winding option & it can move both the directions, According to set speed, count & other parameter, both Bobbin platform & winding motor will rotate synchronously to make proper winding.

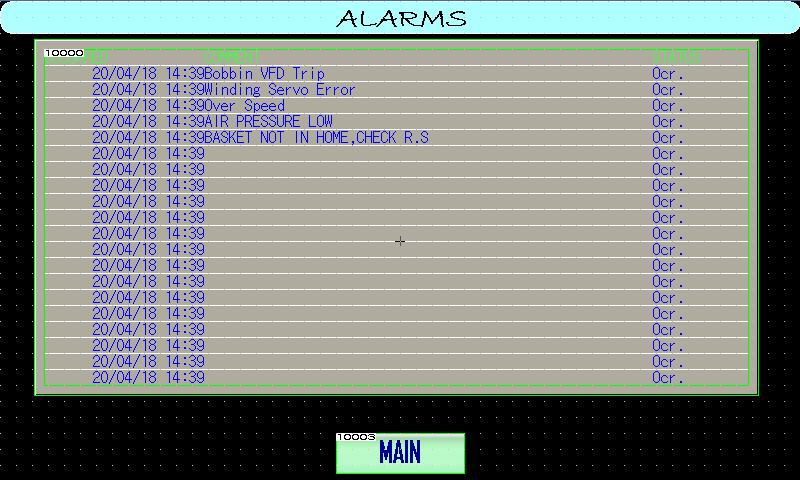

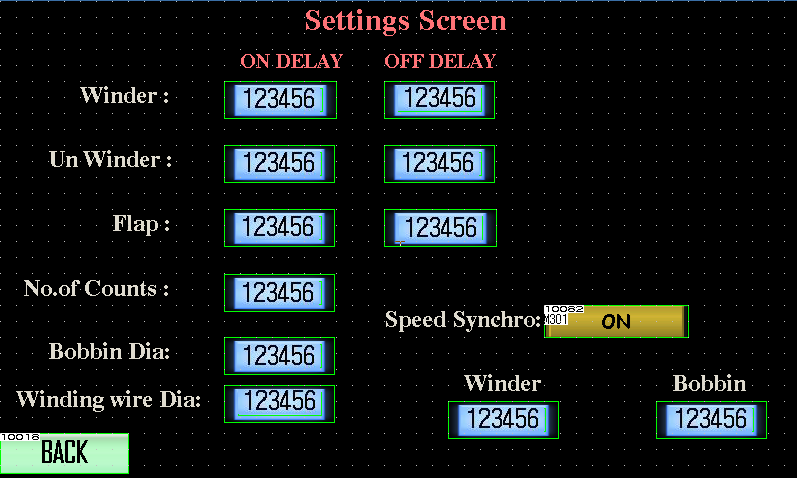

We can set no. of turn counts & time delay’s depends on winding size & total no. of Turns in HMI & it having option for creating recipe, alarm viewing, acknowledgement, manual mode & customized speed synchronization options.
