Automation of Coil Winding Machine

Categories

Summary

This machine has capacity to complete coil winding easily and fast with given number of turns.

Solution

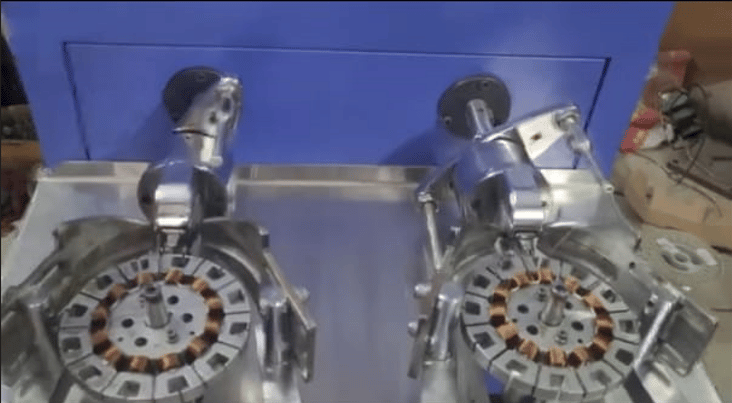

This machine is used for winding coil of a fan stator. This machine operates manually and automatically. Manual mode operation is for testing. This machine can complete one, 12 pole, coil in less than three minutes. The cycle time of coil depends on number of poles selection and a maximum of eighteen poles can be select. This machine can also do two different types of turns alternately for each pole for given pole number of a coil. This machine used mainly two steppers and one induction motor. For counting and homing proxy sensors were used.

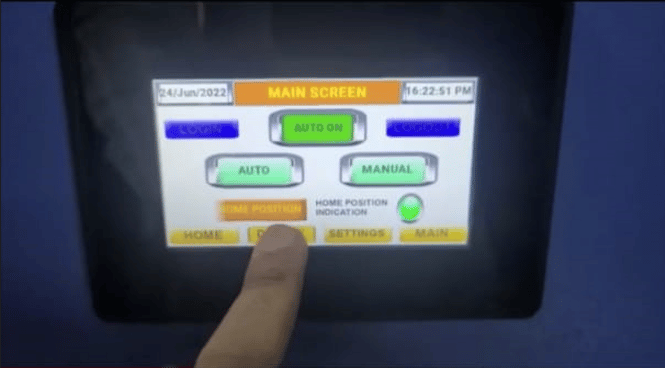

Screen1

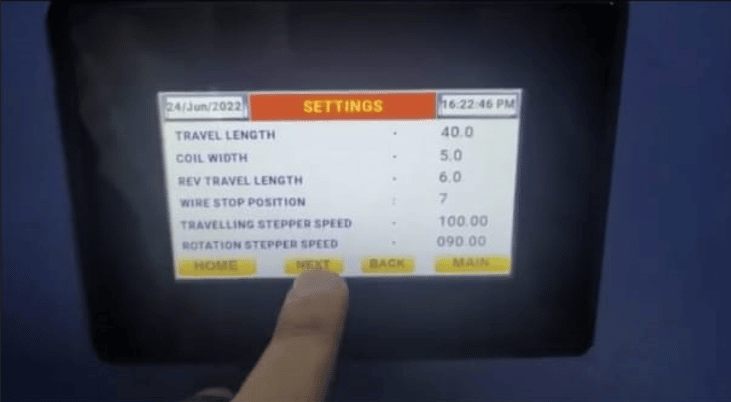

Screen2

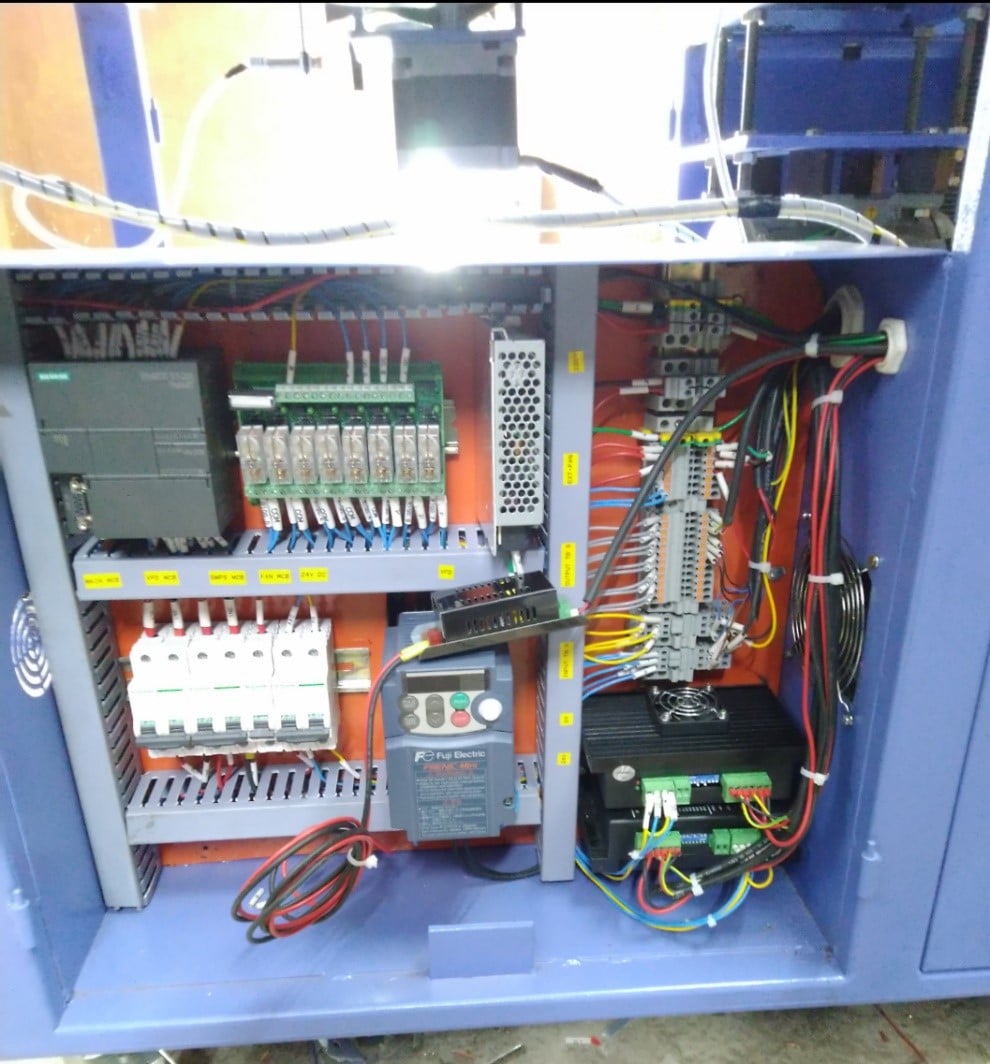

Panel

Customer Benefits:

  • By using this machine operator may not be needed to work hard for winding and can be done easily.
  • Different types of pole number stator winding can be done using this machine
  • This will increase the production
  • Reduces the winding wastage
  • Increases the accuracy of turns

Technologies:

  • Siemens PLC ST20
  • EXOR HMI Esmart04m
