Automated Water Circulation System

Summary

In big colony, there is peak time for water usage from morning 6 to 8 and evening 6 to 7. As the water stored in to tank then it circulates to the colony with the help of electric water pump.

Solution

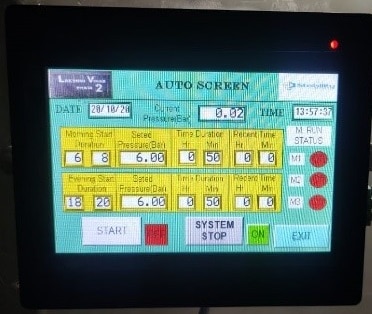

Water pumps, pumps the water to colony during particular time period which is mention in the HMI.

If colony needs less amount of water any particular time or day then system automatically stop pumping the water after pressure reaches its maximum value.

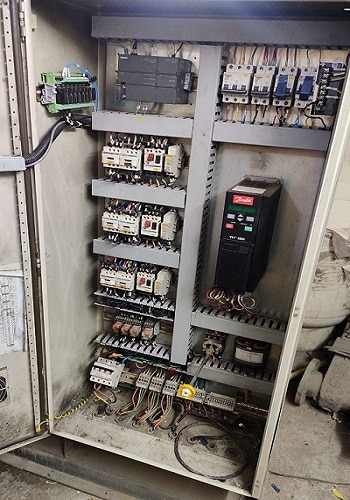

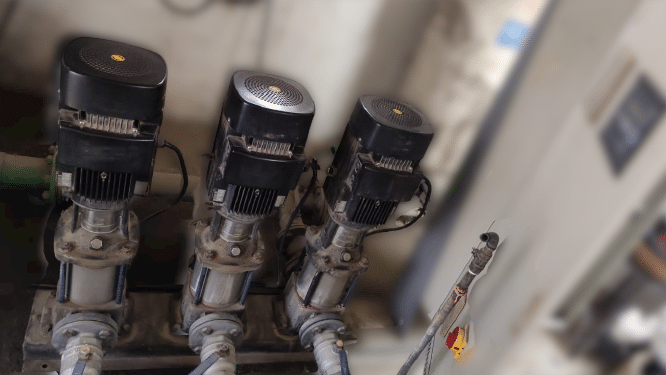

Float switch is provided into the tank for dry motor run protection. Also, pressure switch to protect pipe line. PLC is used to controls the 3 motor (water pump) and HMI is used to feed run and stop time also stop and run system. With this automation system run on time also reduce wastage of electrical power and water

Automated Water Circulation System
Automated Water Circulation System

Customer Benefits:

  • On time water circulate.
  • Get water to each house on time
  • No experience needed
  • Safety & quick

Technologies:

  • Siemens ST-20 PLC
  • Renu FP2043TN HMI
  • Water Pumps.
This entry was posted on November 20, 2020 by Admin
