Boato Machine

Categories

Summary

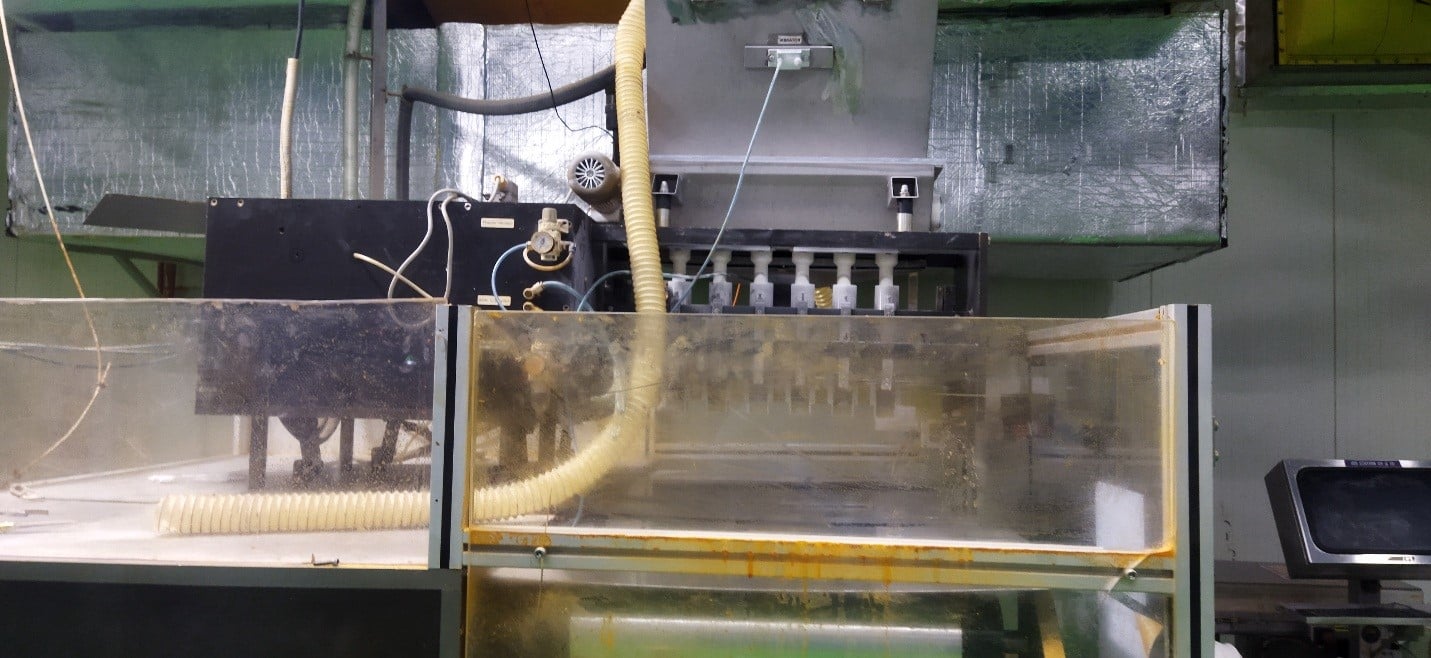

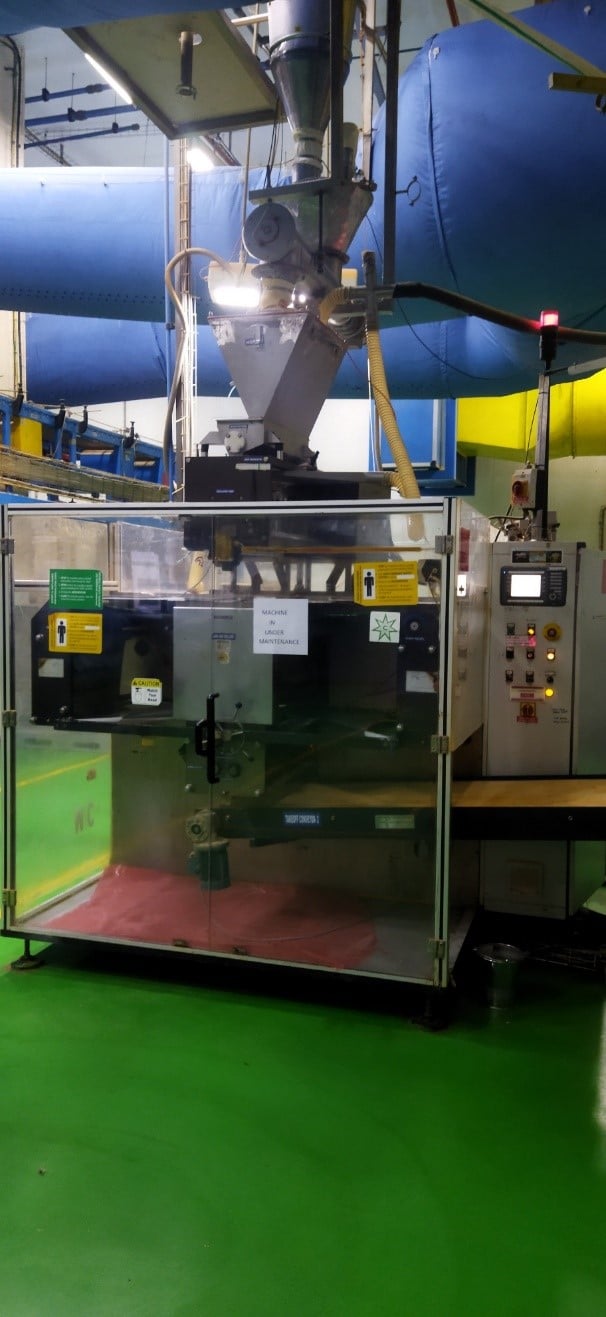

This project is about the packing machine of Tang powder.

Solution

This machine has five servos with PLC and HMI which starts packing the Tang (Rasna) powder automatically after pressing start buttons. Each servo has given specified inputs and outputs from PLC. Total 102 alarms were given in plc and HMI logic for each step of machine auto sequence operation. There is no manual operation the machine. HMI is RS-232 Communication with PLC, and the drive are given Hardware connection. Pilz equipment is given, it is used for safety purpose means after all safety sensor activated than only the servo drives run.

Customer Benfits:

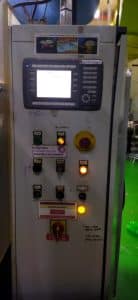

  • User friendly HMI
  • One man operating
  • Gives alarm in abnormal conditions

Technologies:

  • FX 3U PLC
  • E1060 melsec HMI
  • FX 2N modules

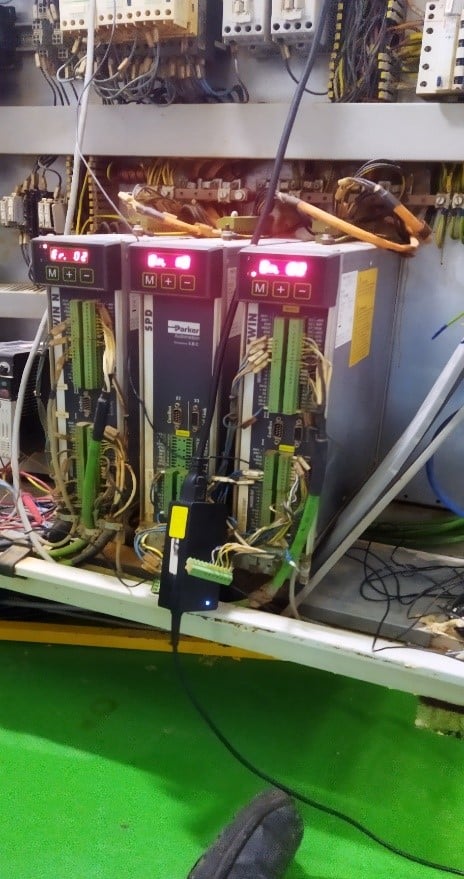

  • SPD and TWIN type model parker servo’s
  • Pilz equipment
