Eaflha RBT Machine Testing

Categories

Summary

EAFLHA RBT Machine testing of the vehicle Different Speeds.

Solution

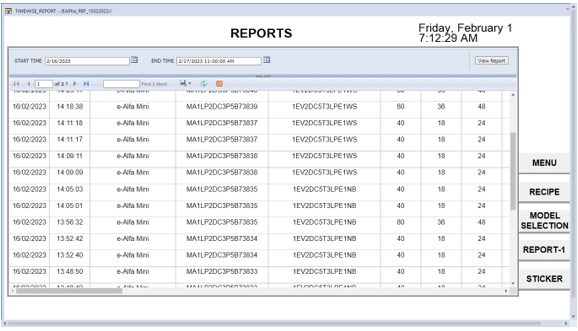

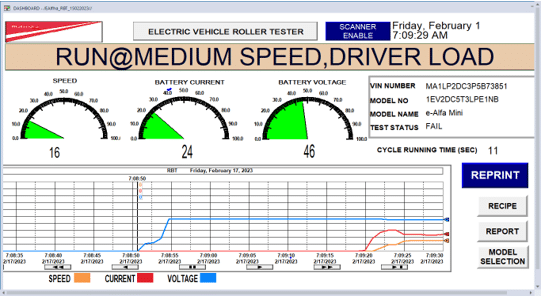

EAFLHA RBT Machine is a testing machine used to test vehicle at different Speeds. And it will also read the Battery current, Battery Voltage of the vehicle at different speed levels (i.e., Low speed, medium speed, high speed and reverse speed). For every speed it will read the min current max current min speed and max speed. After reading the data the values are displayed in SCADA dashboard then after vehicle test Status sticker will generate and it will store the vehicle data in report format. Here the report generation is two types first one is Bulk Report and second one is timewise report. In bulk Report till date data will generate, and in time wise report we need to give start and end date then the report will generate from start date to end date. Vehicle wise data will store and for every vehicle sticker will generate with pass or fail results.

Customer Benfits:

  • Designed to test the vehicle at different level of speeds
  • user friendly to operate and generate the sticker pass fail results
  • Report generation in two different ways
  • Vehicle wise data storage and sticker generation

Technologies:

  • Factory Talk View Site Edition revision 13
