High-speed Paper Counting & Stacking Automation System

Categories

Summary:

High-speed Paper Counting & Stacking machine is used for counting newspaper & make them in to required stack bundles. This will linked-directly or through conveyor to newspaper web presses & it will deliver accurately counted Paper & bundles.

Solution:

High Speed paper counting machine is mainly used to count Newspapers, magazines, Catalogues. This machine can be customized to suit for individual specific requirements.

High-speed Paper Counting & Stacking Automation System

It is a fully automatic machine & this machine link directly to web press, so it can count papers online with synchronizing speed with Main web press. These machines having high speed sensor it will count flow of papers & give command to PLC, depends on count stacking will be done with predefined count set in HMI, it having bucket turning mechanism to turn at required count for proper paper stack & also vibration mechanism will help to stack properly. After stacking it will form bundles & send to conveyor system for dispatch.

High-speed Paper Counting & Stacking Automation System

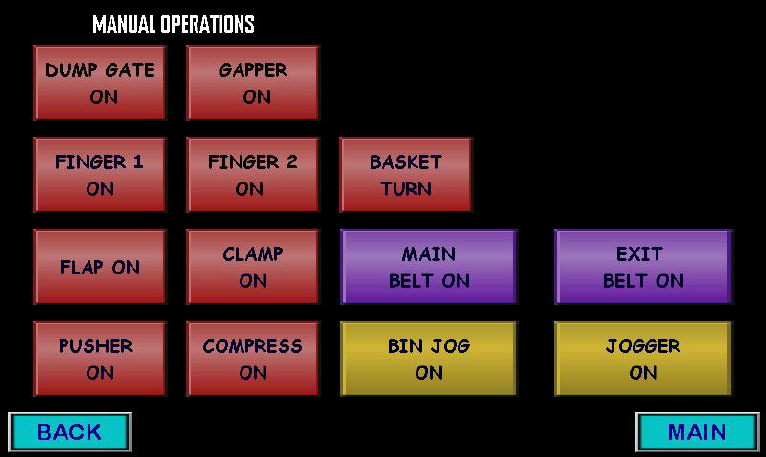

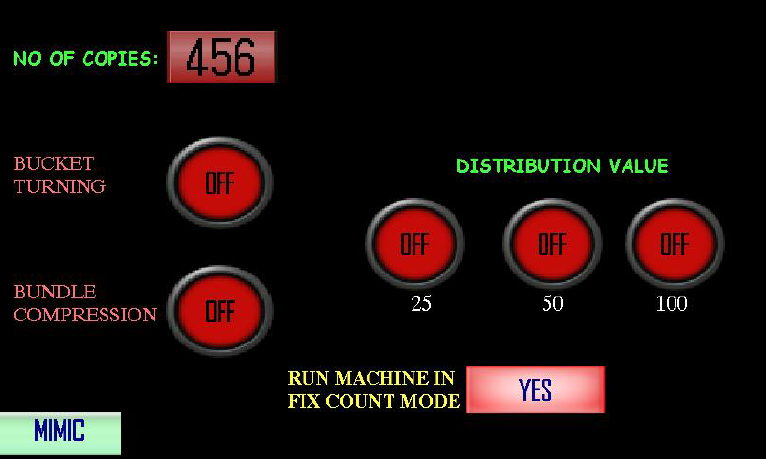

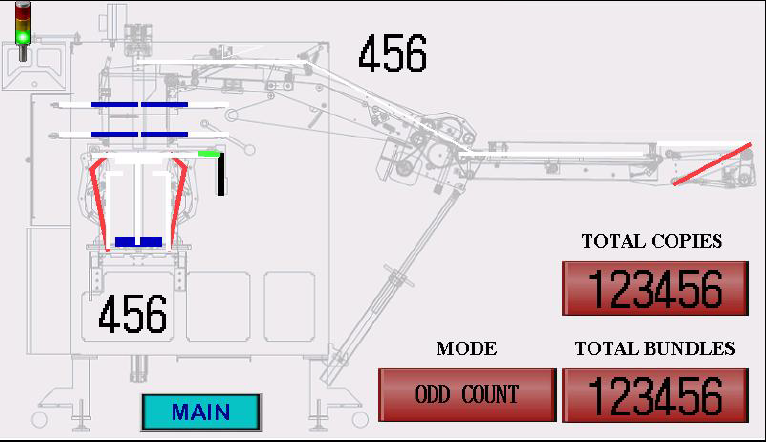

High speed Automation system includes, high speed counter, it having user friendly operation & wide touch screen display on a movable arm puts the controls, rich animation & also more functionalities are added to Easy access to the machine for service and maintenance.

High-speed Paper Counting & Stacking Automation System

Customer Benefits:

  • High speed Counting
  • High efficiency
  • Ease of Maintenance.

Technologies:

  • Mitsubishi FX PLC
  • Mitsubishi HMI.
