Pivot Automatic Cutting Machine

Categories

Summary

Worked on automation of Lathe Machine. This machine does the lathing and cutting work of a pivot on both sides.

Solution

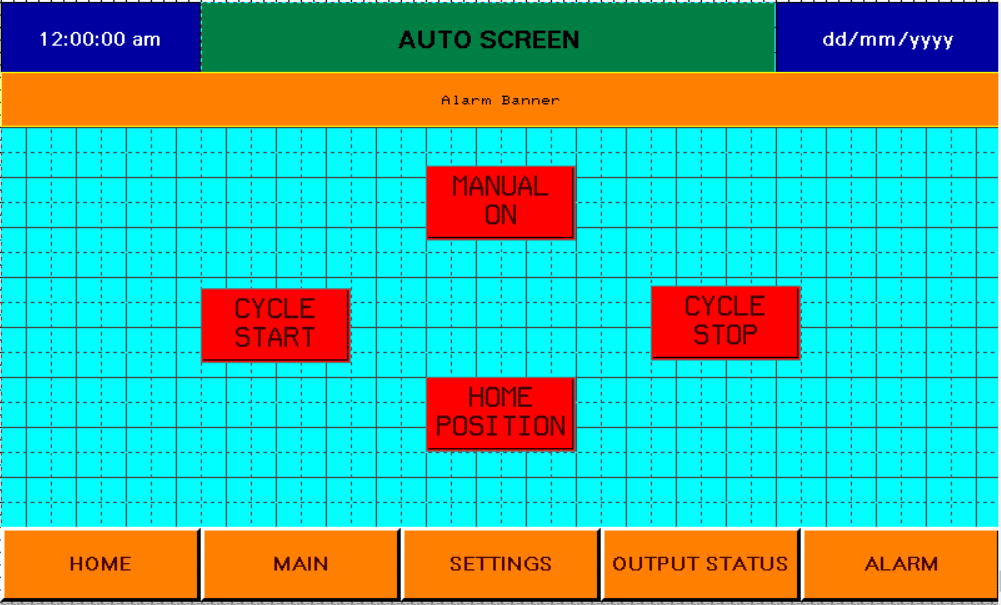

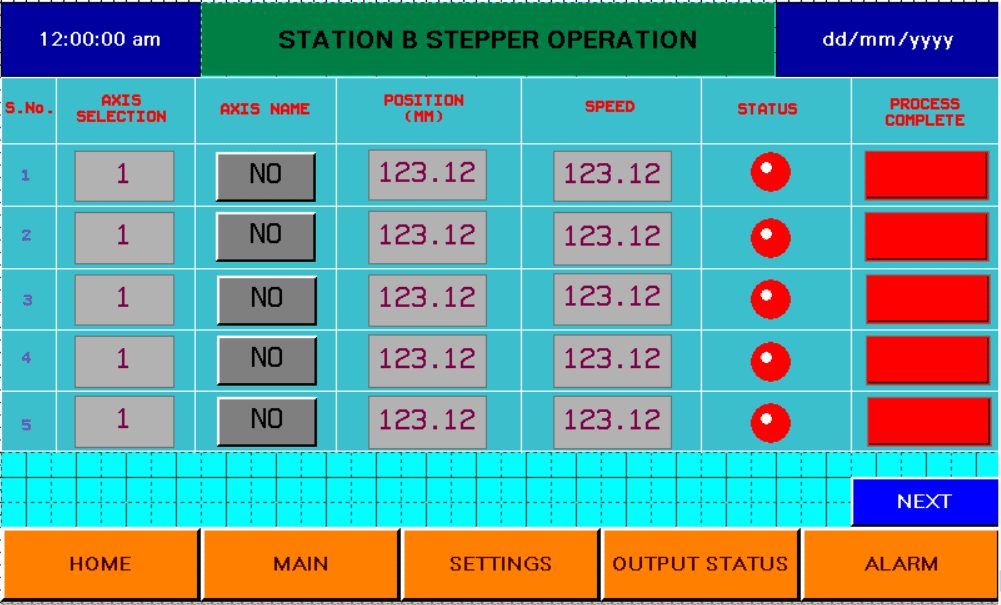

This machine has five stepper motors, two induction motors, seven pneumatic cylinders, proxy sensors and read switches as required. This machine does the lathing work and cutting work of a pivot. It has three sections, section A, B & C. Section A & B are used for lathing work and section C does the cutting work. Total process of a pivot will complete in 30 seconds. This machine has both manual and automatic operation. Alarms for every pneumatic cylinder were given in order to avoid accidents.

Customer Benefits:

  • This machine is used to do the pivot lathing work in fastest way. By using this machine, we can mainly reduce the work time, that is time saving  during the work is done.
  • Accurate cutting of pivot
  • Automatic component collection and process operation

Technologies:

  • Siemens PLC ST60 & ST20
  • Schneider HMI GXU3500

Conatct Us

Email

contact@stabilitygroup.in

Phone

 +91 9030070085

+91 7801063999

Address

#501C, Bankers Chambers,
A S Raju Nagar, Kukatpally,
Hyderabad Telangana -500 072.

Summary

In paper cup manufacturing industry cups counting and packaging manually consumes a lot of time and requires a huge Man-power. Here we have provided a automation solution for the counting of the cups & packaging simultaneously to make the operation faster and accurately. Thus, an Automatic cup counting machine is used.

Solution

Bush Pressing Machine is used to verify the inner diameter of a cylinder and also the leakages in the cylinder. In this process fixed size of bush will send through cylinder and pass air into the cylinder to check the leakage by measuring inlet and outlet pressure, so that inner diameter of the cylinder will be verified as per quality standard. This process also verifies any leakage of component without visual inspection.

Automated Counting & Packing Solution for Disposal Cups
Automated Counting & Packing Solution for Disposal Cups

Customer Benfits:

  • Performance Improvement
  • Process Optimization
  • Increased Productivity

Technologies:

  • Siemens PLC ST60 & ST20
  • Schneider HMI GXU3500
